VPN Management

Path: /settings/vpn

This page manages VPN profiles for secure access to internal networks from external locations. It provides fast and secure connections using the WireGuard protocol.

VPN Management

Permission Notice

If you cannot access this page, please request VPN Management permission from your organization administrator.

Why Do You Need VPN Management?​

In DevSecOps environments, developers and operators often need to access internal systems from external locations. With KIWI's VPN management features, you can:

  • Secure Remote Access: Connect safely to internal networks through encrypted tunnels.
  • Centralized Management: Manage multiple VPN profiles in one place and share with team members.
  • Device Integration: Link VPN profiles to specific devices for automated access control
  • Multi-Session Support: Connect to multiple VPNs simultaneously for complex network environments.

What is VPN?​

VPN (Virtual Private Network) is a technology that allows secure access to internal networks through the internet. Simply put, you can access internal systems as if you were in the office, even when you're outside.

Supported VPN Types​

VPN protocols supported by KIWI.

  • WireGuard (Supported): A modern and fast VPN protocol. Its concise code makes security verification easy, and it's battery-efficient on mobile devices. This is the default protocol used by KIWI.
  • OpenVPN (Coming Soon): A proven and time-tested protocol. Works in various environments.
  • IPSec (Coming Soon): A standard protocol widely used in enterprise environments.
Why Choose WireGuard?

WireGuard consists of less than 4,000 lines of code, making security audits easy, and provides up to 3x faster performance than OpenVPN. It operates seamlessly during connection transitions, making it ideal for mobile environments.

Key Features​

Profile Management​

Save and manage VPN connection information in profile format.

  • Register Profile: Save new VPN connection information. Create profiles by entering server address, authentication keys, etc.
  • Edit Profile: Modify existing profile information. Profiles currently connected cannot be edited.
  • Delete Profile: Remove profiles that are no longer needed.
  • Search and Filter: Search profiles by name or server address and filter by type/status.

Connection Management​

Connect and disconnect VPN sessions.

  • Session Connect: Start a VPN connection with the selected profile. Once connected, you can access that network.
  • Session Disconnect: Terminate active VPN connections.
  • Connection Test: Verify that profile settings are correct before actual connection.
  • Multi-Session: Connect to multiple VPNs simultaneously. Each profile maintains independent sessions.

Device Integration​

Link VPN profiles with specific devices for management.

  • Link Device: Connect a device to a VPN profile. Linked devices will be accessed through that VPN.
  • Check Linked Devices: See how many devices are connected to each profile.
  • Unlink: Remove the connection between device and VPN profile.

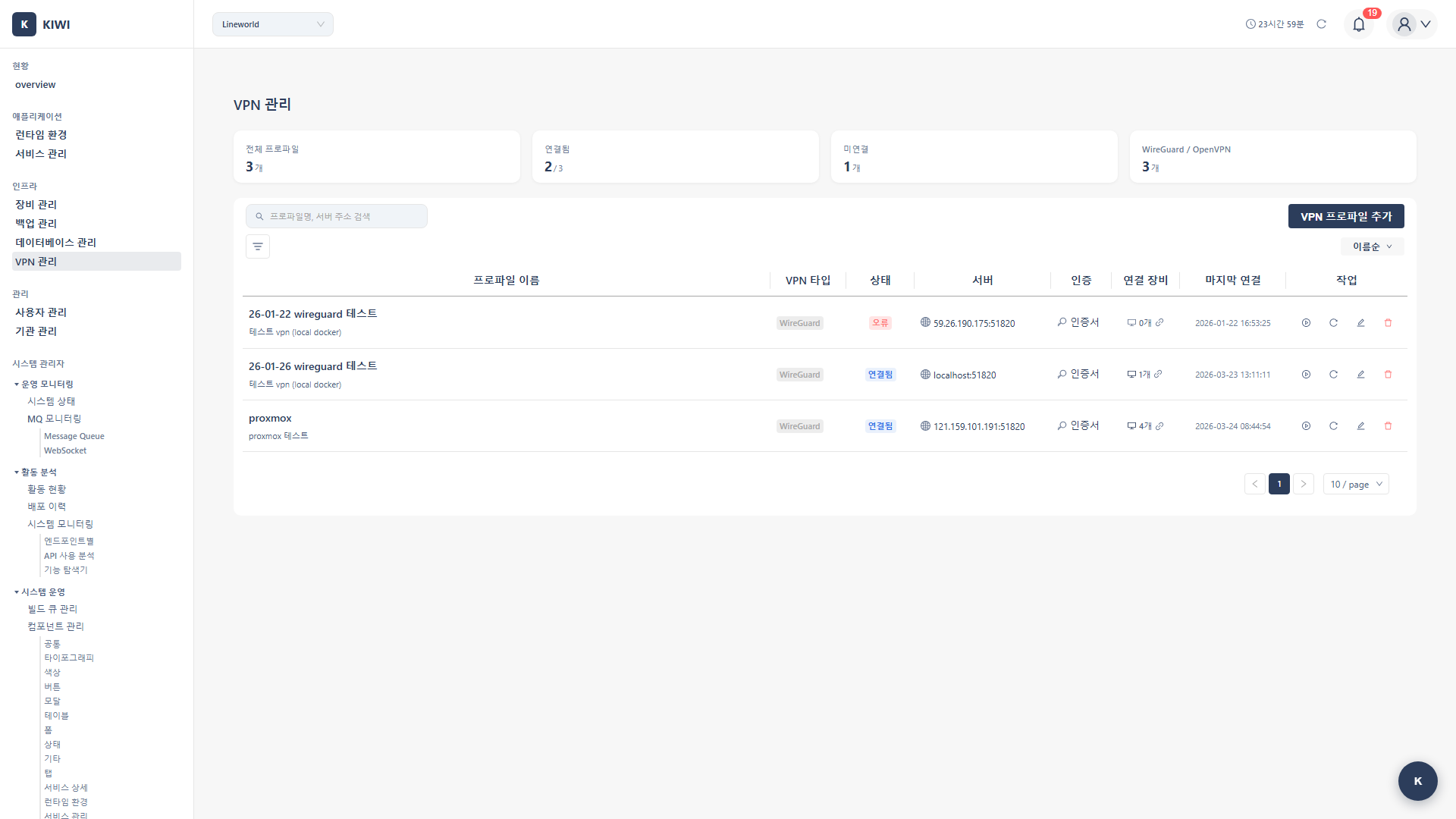

UI Layout​

This section explains the components of the VPN Management page.

Statistics Cards​

Statistics information is displayed at the top of the page for an overview of VPN status.

  • Total Profiles: Total number of registered VPN profiles.
  • Connected: Number of currently active VPN connections.
  • Disconnected: Number of profiles not connected.
  • By Type: Number of profiles by type (WireGuard, OpenVPN, etc.)

Profile List​

Registered VPN profiles are displayed in a table format.

  • Profile Name: Name and description identifying the profile.
  • VPN Type: WireGuard, OpenVPN, IPSec, etc.
  • Status: Current status such as Connected, Disconnected, Connecting, Error
  • Server: VPN server address and port
  • Auth: Authentication method used (Certificate, PSK, Username, etc.)
  • Linked Devices: Number of devices connected to this profile.
  • Last Connected: Most recent connection time
  • Actions: Connect/Disconnect, Test, Edit, Delete buttons.

How to Use​

1. Registering a VPN Profile​

Here's how to register a new VPN connection.

Step 1: Start Adding Profile

  1. Navigate to the [VPN Management] page
  2. Click the Add VPN Profile button in the upper right corner.

Step 2: Enter Basic Information

  • Profile Name (Required): An identifiable name. Example: "Dev Server VPN"
  • VPN Type (Required): Currently only WireGuard is supported.
  • Description (Optional): Description of the profile. Example: "For dev team internal network access"

Step 3: Enter Server Information

  • Server Address (Required): IP or domain of the VPN server. Example: vpn.example.com
  • Port (Required): VPN server port. Default for WireGuard is 51820.
Default Port Numbers
  • WireGuard: 51820
  • OpenVPN: 1194
  • IPSec: 500

Ports may vary depending on VPN server configuration, so check with your administrator.

Step 4: WireGuard Key Settings

WireGuard uses public key cryptography. Copy the required values from your client configuration file (.conf).

  • Private Key (Required): The client's secret key. Enter the PrivateKey value from the [Interface] section.
  • Peer Public Key (Required): The VPN server's public key. Enter the PublicKey value from the [Peer] section.
  • PSK (Optional): Pre-shared key for additional security. Enter the PresharedKey value from the [Peer] section if present.
WireGuard Configuration File Example
[Interface]
PrivateKey = 0HnoZ8QFjhjkqS707ZfTZSErFOs02B9QFcGqVBPGO2Y=  # ← Private Key
Address = 10.13.13.2/32

[Peer]
PublicKey = 4uGS1h6VhsWuQCEuVmqUu8X3fov5ziWXmhSFG9l1UR4=  # ← Peer Public Key
PresharedKey = k+biOyIx8IEEnGDbjATWKpSIEMKsVMlCdV6ofYYwbKQ=  # ← PSK (Optional)
Endpoint = vpn.example.com:51820
AllowedIPs = 10.13.13.0/24

Step 5: Network Settings (Optional)

  • Allowed IPs: IP ranges to route through the VPN. Example: 10.13.13.0/24, 10.100.0.0/24
  • Keepalive (seconds): Packet transmission interval to maintain connection in NAT environments. Default of 25 seconds is recommended.

Step 6: Save Review your settings and click the Add button.

2. Connecting VPN​

How to connect to VPN using a registered profile.

  1. Find the profile you want to connect to in the profile list
  2. Click the Connect button (play icon) on that row
  3. When connection succeeds, status changes to Session Active
  4. You can now access that VPN network
Before Connecting
  • Make sure your internet connection is working.
  • Verify the VPN port is not blocked by firewall
  • Confirm the key information in the profile is correct

3. Disconnecting VPN​

How to terminate an active VPN connection.

  1. Find the connected profile (Session Active status) in the profile list
  2. Click the Disconnect button (stop icon) on that row
  3. When disconnected, status changes to Disconnected

4. Testing Connection​

Verify that profile settings are correct before actual connection.

  1. Click the Test button (refresh icon) on the profile you want to test
  2. A test modal opens and connection verification proceeds.
  3. Check the test result:
    • Success: Profile settings are correct and connection is possible.
    • Failure: Check the error message and modify settings.

5. Linking Devices​

Set up device access through a specific VPN profile.

  1. Click the number in the Linked Devices column in the profile list
  2. Device link management modal opens.
  3. Search and select the device to link
  4. Click the Link button.
  5. Linked devices will be accessed through that VPN

6. Editing Profile​

Change settings of an existing profile.

  1. Click the Edit button (pencil icon) on the profile you want to modify
  2. Change the necessary information in the profile edit modal.
  3. Click the Edit button to save.
Edit Restrictions

Profiles currently connected to VPN cannot be edited. Disconnect first, then edit.

7. Deleting Profile​

Remove profiles that are no longer needed.

  1. Click the Delete button (trash icon) on the profile you want to remove.
  2. Click Delete in the confirmation dialog
  3. Profile is deleted.
Caution When Deleting
  • Connected profiles can also be deleted, but the connection will be terminated immediately.
  • Device VPN connections linked to that profile will also be disconnected.
  • Deleted profiles cannot be recovered.

Connection Status​

Explanation of VPN profile statuses.

  • Session Active (Blue): Currently connected to VPN. You can access that network.
  • Connected (Blue): Connection to server is available. Starting a session will connect immediately.
  • Connecting (Orange): Connection is being attempted. Please wait.
  • Disconnected (Gray): Not connected. Click the connect button to connect.
  • Error (Red): A problem occurred with the connection. Check settings and try again.

Permission Description​

Permissions required for VPN management.

  • vpn:create: Can create new VPN profiles.
  • vpn:update: Can modify existing profiles.
  • vpn:delete: Can delete profiles.
  • vpn:connect: Can perform VPN connect/disconnect
  • vpn:test: Can run connection tests.
When You Don't Have Permission

Buttons for features you don't have permission for are disabled or not displayed. Request necessary permissions from your organization administrator.

Troubleshooting​

Connection Failed​

  • Check server address/port: Verify VPN server information is accurate.
  • Check key information: Verify private key and peer public key are correct
  • Check firewall: Ensure VPN port (default 51820) is allowed in firewall
  • Check network: Ensure internet connection is working.

Connected but Cannot Access Internal Systems​

  • Check Allowed IPs: Verify the IP range you're trying to access is included in Allowed IPs
  • Check routing: Verify routing to that range is configured on VPN server.
  • Check internal firewall: Verify access from VPN range is allowed in internal system firewall

Connection Frequently Drops​

  • Keepalive setting: Set Keepalive to 25 seconds in NAT environments.
  • Network condition: Drops may occur in unstable network environments.
  • Server status: Check VPN server status with your administrator

Glossary​

Simple explanations for terms you may encounter for the first time.

  • VPN (Virtual Private Network): Technology for securely connecting to private networks through public networks.
  • WireGuard: A fast and modern VPN protocol. High security due to its concise code.
  • Peer: The other party in a VPN connection. From the client's perspective, the server is the peer.
  • Public/Private Key: Key pair used for encryption. Never share the private key; the public key is shared with the other party.
  • PSK (Pre-Shared Key): A pre-shared secret key for additional security.
  • Allowed IPs: IP ranges to transmit through the VPN tunnel. Only traffic to these ranges goes through VPN.
  • Keepalive: Packets sent periodically to maintain connection in NAT environments.
  • NAT (Network Address Translation): Technology that converts private IPs to public IPs. Used in most home/office networks.

Best Practices​

Recommendations for safe and efficient VPN management.

Security Recommendations
  • Key Management: Keep private keys secure and never share them.
  • Regular Renewal: Renew keys periodically for security.
  • Minimum Privilege: Add only necessary IP ranges to Allowed IPs
  • End Connection: Disconnect VPN when not in use
Operational Recommendations
  • Profile Naming: Use clear names that indicate purpose (e.g., "DevServer-VPN", "DBServer-Access")
  • Write Descriptions: Record purpose and connection targets in profile description.
  • Test First: Run connection test after registering new profiles.
  • Device Integration: Link frequently accessed devices to VPN profiles.
